Life with 34 keys

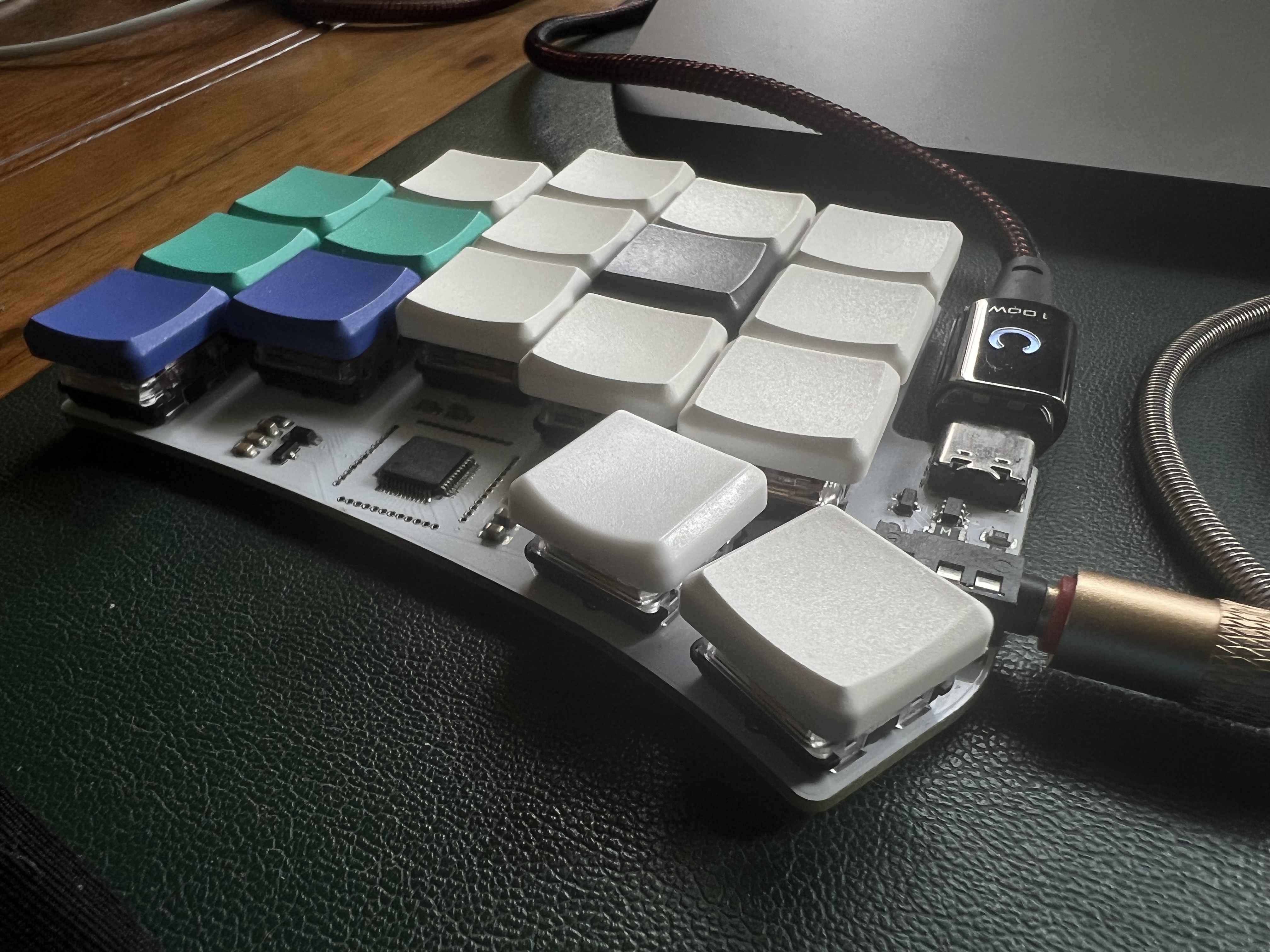

ferris compactferris compact

Pierre Chevalier’s ferris family of keyboards is based on using a 34-key split layout focused on minimalism, portability, and ergonomic comfort. It is fully open-sourced and the firmware is contributed to the QMK project released under GPL. You can print one yourself, purchase a kit to assemlbe (including soldering), or buy a pre-built one and just add keycaps. I first came across this from Ben Vallack’s channel where he discusses workflow optimizations including various trials with keyboards.

Layout

You can use the layout editor at config.qmk.fm to implement various layers, however you see fit. I currently use the following three layers though this is always an exercise in optimization (much like my emacs configuration). A few notes on the layout:

  • I had initially used home-row mods (hrm) meaning that A, S, D, and F would be equivalent to CTRL, ALT, SHIFT, CMD/GUI, and the symmetric equivalent on the other side with ;, L, K, and J. But as an emacs user I found needing my meta key (CMD/GUI) and control far more accesible for multiple combinations (e.g. C-x C-r for opening a recent file, where C- means holding down CTRL), and so the hrm setup meant having to switch whihc CTRL key I was holding down depening on what the action was. This is still fine for SHIFT and ALT, however.
  • LT(N,X): this lets me switch to layer N when held, otherwise the input is X. I’ve mapped the layer 1 and TAB on the left thumb key; and layer 2 and RETURN on the right thumb key
  • I do think there is plenty of room for optimization, and I’m still techinically faster on a standard keyboard (loving my [Happy Hacking Keyboard][hhk]) but the fact that my hands almost never have to move is a huge benefit.

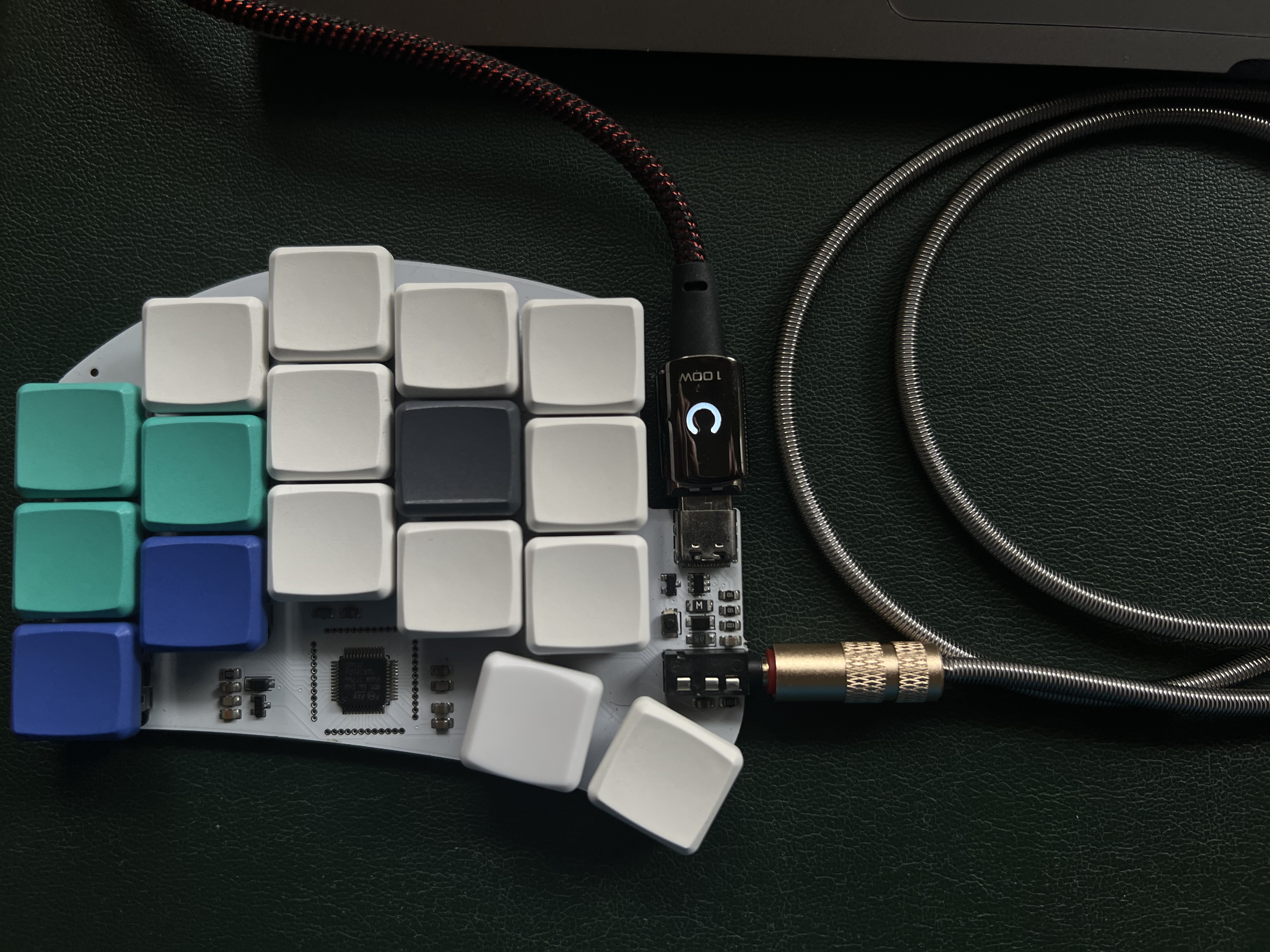

ferris compact

QMK

I use the v0.2 Ferris Compact, and though it’s marked as experimental, I’ve had no issues compiling and flashing the board. You can find plenty of documentation regarding QMK on the official website.

Compiling the source and flashing the board

Replace the following variables in the build.sh script:

  • QMK_FIRMWARE_DIR: location of the QMK source
  • LAYOUT: name for your layout
  • LAYOUT_FILE: filename of your JSON layout

Build

#!/bin/sh

QMK_FIRMWARE_DIR=$HOME/src/qmk_firmware
LAYOUT=arj_ferris
LAYOUT_FILE=./ferris_compact_v01.json
CURRENTDIR=`pwd`

mkdir -p $QMK_FIRMWARE_DIR/keyboards/ferris/keymaps/$LAYOUT/
cp layouts/$LAYOUT/keymap.c $QMK_FIRMWARE_DIR/keyboards/ferris/keymaps/$LAYOUT/keymap.c
cp layouts/$LAYOUT/$LAYOUT_FILE $QMK_FIRMWARE_DIR/keyboards/ferris/keymaps/$LAYOUT/$LAYOUT_FILE

cd $QMK_FIRMWARE_DIR
qmk compile -kb ferris/0_2/compact -km $LAYOUT
cd $CURRENTDIR

Flash

#!/bin/sh

source build.sh
qmk flash -kb ferris/0_2/compact -km $LAYOUT
